CD4051B-Q1 CMOS Single 8-Channel Analog Multiplexer/Demultiplexer

CD4051B-Q1 Description

CD4051B-Q1, CD4053B-Q1 SCHS354C * AUGUST 1998 * REVISED MARCH 2023 CD405xB-Q1 Automotive CMOS Single 8-Channel Analog Multiplexer or D.
The CD405xB-Q1 analog multiplexers and demultiplexers are digitally-controlled analog switches having low ON impedance and very low OFF leakage curre.

CD4051B-Q1 Applications

* Temperature grade 1:
* 45°C to +125°C, TA
* Wide range of digital and analog signal levels:
* Digital: 3 V to 20 V
* Analog: ≤ 20 VP-P
* Low ON resistance, 125 Ω (typical) over 15 VP-P signal input range for VDD
* VEE = 18 V
* High OF

📥 Download Datasheet

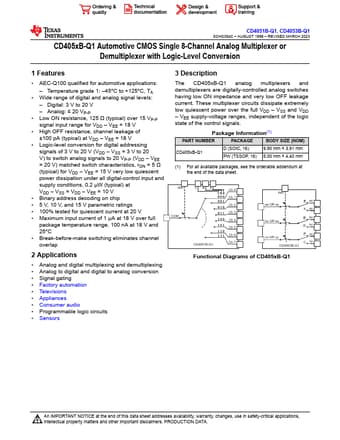

Preview of CD4051B-Q1 PDF
