CD4053B-Q1, CD4051B-Q1 Datasheet - Texas Instruments

CD4053B-Q1 CMOS Single 8-Channel Analog Multiplexer/Demultiplexer

The CD405xB-Q1 analog multiplexers and demultiplexers are digitally-controlled analog switches having low ON impedance and very low OFF leakage current. These multiplexer circuits dissipate extremely low quiescent power over the full VDD * VSS and VDD * VEE supply-voltage ranges, in.

CD4053B-Q1 Features

* AEC-Q100 qualified for automotive applications:

* Temperature grade 1:

* 45°C to +125°C, TA

* Wide range of digital and analog signal levels:

* Digital: 3 V to 20 V

* Analog: ≤ 20 VP-P

* Low ON resistance, 125 Ω (typical) over 15 VP-P signal i

CD4051B-Q1-etcTI.pdf

This datasheet PDF includes multiple part numbers: CD4053B-Q1, CD4051B-Q1. Please refer to the document for exact specifications by model.

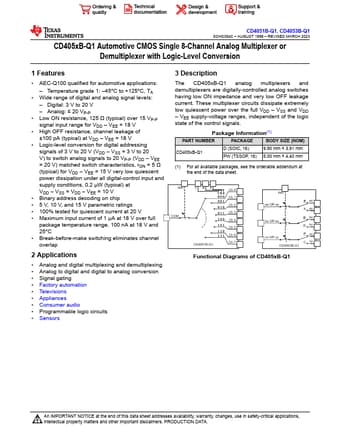

CD4053B-Q1 Datasheet Preview Page 2 CD4053B-Q1 Datasheet Preview Page 3

Datasheet Details

Part number:

CD4053B-Q1, CD4051B-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.18 MB

Description:

Cmos single 8-channel analog multiplexer/demultiplexer.

Note:

This datasheet PDF includes multiple part numbers: CD4053B-Q1, CD4051B-Q1.
Please refer to the document for exact specifications by model.
