CD4077BE - CMOS Quad Exclusive-OR and Exclusive-NOR Gate

Product Overview

📥 Download Datasheet

Datasheet preview – CD4077BE

Datasheet Details

Part number CD4077BE
Manufacturer Texas Instruments
File Size 1.29 MB
Description CMOS Quad Exclusive-OR and Exclusive-NOR Gate
Datasheet download datasheet CD4077BE Datasheet
Note This datasheet PDF includes multiple part numbers: CD4077BE, CD4070B.
Please refer to the document for exact specifications by model.

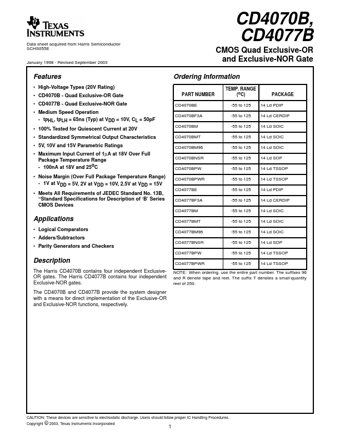

Additional preview pages of the CD4077BE datasheet.

Product details

Description

of ‘B’ Series CMOS Devices Applications Logical Comparators Adders/Subtractors Parity Generators and Checkers Description The Harris CD4070B contains four independent ExclusiveOR gates.The Harris CD4077B contains four independent Exclusive-NOR gates.The CD4070B and CD4077B provide the system designer with a means for direct implementation of the Exclusive-OR and Exclusive-NOR functions, respectively.PART NUMBER TEMP.RANGE (oC) PACKAGE CD4070BE -55 to 125 14
