CD54HC251 - 8-Input Multiplexer

Texas Instruments

📥 Download Datasheet

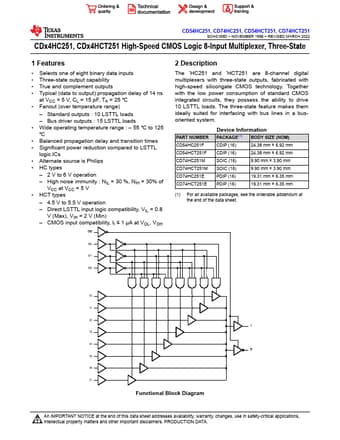

CD54HC251 Datasheet Preview — Preview of CD54HC251 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CD54HC251
Manufacturer	Texas Instruments ↗
File Size	0.98 MB
Description	8-Input Multiplexer
Datasheet	CD54HC251-etcTI.pdf

CD54HC251 Product details

Description

The ’HC251 and ’HCT251 are 8-channel digital multiplexers with three-state outputs, fabricated with high-speed silicongate CMOS technology.

Features

Selects one of eight binary data inputs.
Three-state output capability.
True and complement outputs.
Typical (data to output) propagation delay of 14 ns at VCC = 5 V, CL = 15 pF, TA = 25 ℃.
Fanout (over temperature range).
Standard outputs : 10 LSTTL loads.
Bus driver outputs : 15 LSTTL loads.
Wide operating temperature range :.
55 ℃ to 125 ℃.
Balanced propagation delay and transition times.
Signi.
