CD54HCT175, CD54HC175 Quad D-Type Flip-Flop

CD54HCT175 Description

Data sheet acquired from Harris Semiconductor SCHS160C August 1997 - Revised October 2003 CD54HC175, CD74HC175, CD54HCT175, CD74HCT175 High-Speed CMO.
advantage of standard CMOS ICs and the ability to drive 10 LSTTL devices.

CD54HCT175 Features

* Common Clock and Asynchronous Reset on Four D-Type Flip-Flops
* Positive Edge Pulse Triggering
* Complementary Outputs
* Buffered Inputs
* Fanout (Over Temperature Range) - Standard Outputs
* 10 LSTTL Loads - Bus Driver Outputs

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CD54HCT175, CD54HC175. Please refer to the document for exact specifications by model.

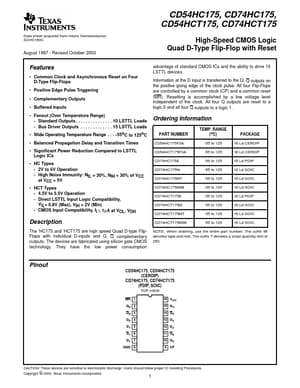

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CD54HCT175, CD54HC175
Manufacturer
Texas Instruments ↗
File Size
487.60 KB
Datasheet
CD54HC175-etcTI.pdf
Description
Quad D-Type Flip-Flop
Note
This datasheet PDF includes multiple part numbers: CD54HCT175, CD54HC175.
Please refer to the document for exact specifications by model.
