CD74AC253

Dual 4-Input Multiplexer

CD74AC253 Features

* Buffered Inputs

* Typical Propagation Delay - 6.3ns at VCC = 5V, TA = 25oC, CL = 50pF

* Exceeds 2kV ESD Protection MIL-STD-883, Method 3015

* SCR-Latchup-Resistant CMOS Process and Circuit Design

* Speed of Bipolar FAST™/AS/S with Significantly Reduced Power

CD74AC253 General Description

The CD74AC253 and ’ACT253 dual 4-input multiplexers that utilize Advanced CMOS Logic technology. One of the four sources for each section is selected by the common Select inputs, S0 and S1. When the Output Enable (1OE or 2OE) is HIGH, the output is in the high-impedance state. Ordering Information .

CD74AC253 Datasheet (353.97 KB)

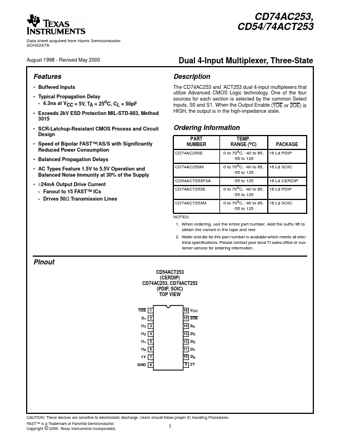

Preview of CD74AC253 PDF

Datasheet Details

Part number:

CD74AC253

Manufacturer:

Texas Instruments ↗

File Size:

353.97 KB

Description:

Dual 4-input multiplexer.
Data sheet acquired from Harris Semiconductor SCHS247A CD74AC253, CD54/74ACT253 August 1998 - Revised May 2000 Dual 4-Input Multiplexer, Three-Stat.
