CD74AC540 Datasheet - Texas Instruments

CD74AC540 Octal Buffer/Line Drivers

Data sheet acquired from Harris Semiconductor SCHS285A Revised November 1999 The CD54/74AC540, -541, and CD54/74ACT540, -541 octal buffer/line drivers use the RCA ADVANCED CMOS technology. The CD54/74AC/ACT540 are inverting 3-state buffers having two active-LOW output enables. The CD54/74AC/ACT541 are non-inverting 3-state buffers having two active-LOW output enables. The CD74AC540, -541, and CD74ACT540, -541 are supplied in 20-lead dual-in-line plastic packages (E suffix) and in 20-l.

CD74AC540 Datasheet (0.98 MB)

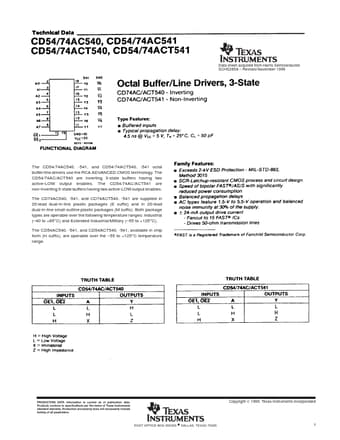

Preview of CD74AC540 PDF

Datasheet Details

Part number:

CD74AC540

Manufacturer:

Texas Instruments ↗

File Size:

0.98 MB

Description:

Octal buffer/line drivers.
