CD74ACT32

QUADRUPLE 2-INPUT POSITIVE-OR GATES

CD74ACT32 General Description

ordering information The ’ACT32 devices are quadruple 2-input positive-OR gates. These devices perform the Boolean function + + ) Y A

* B or Y A B in positive logic. ORDERING INFORMATION TA PACKAGE† ORDERABLE PART NUMBER TOP-SIDE MARKING PDIP

* E Tube CD74ACT32E CD74ACT32E .

CD74ACT32 Datasheet (566.45 KB)

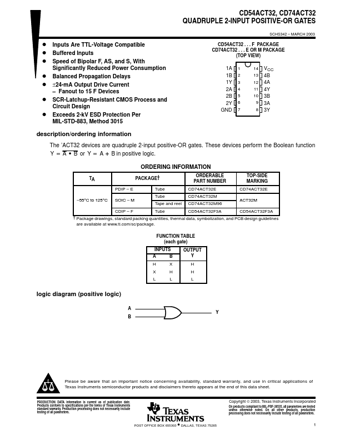

Preview of CD74ACT32 PDF

Datasheet Details

Part number:

CD74ACT32

Manufacturer:

Texas Instruments ↗

File Size:

566.45 KB

Description:

Quadruple 2-input positive-or gates.
CD54ACT32, CD74ACT32 QUADRUPLE 2-INPUT POSITIVE-OR GATES D Inputs Are TTL-Voltage Compatible D Buffered Inputs D Speed of Bipolar F, AS, and S, With .
