CD74FCT374 BiCMOS OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOP

Texas Instruments

Description

CD74FCT374 BiCMOS OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOP WITH 3-STATE OUTPUTS SCBS739 * JULY 2000 D BiCMOS Technology With Low Quiescent Power.
The CD74FCT374 is an octal, edge-triggered, D-type flip-flop that uses a small-geometry BiCMOS technology and features 3-state outputs designed speci.

📥 Download Datasheet

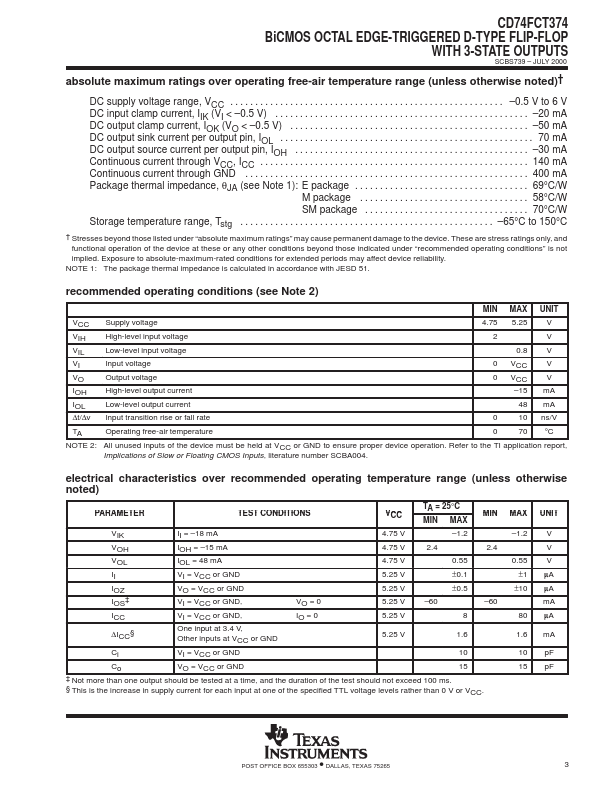

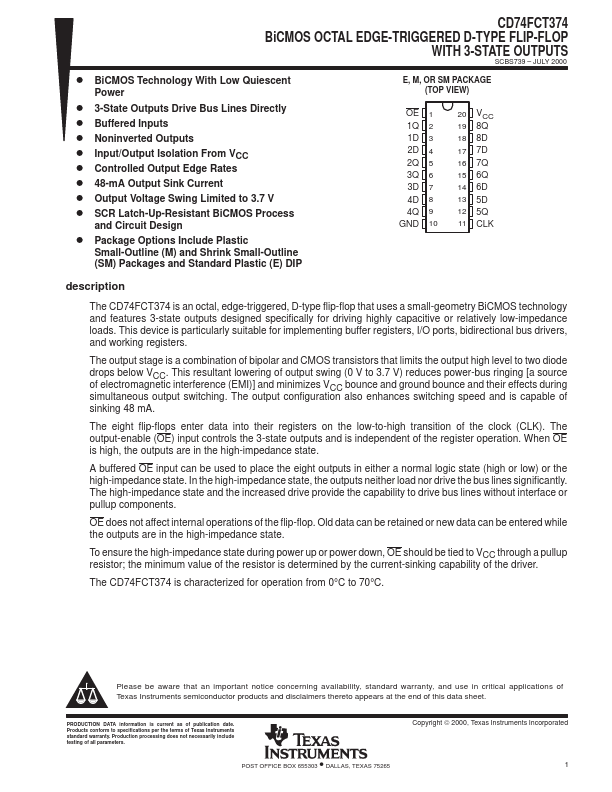

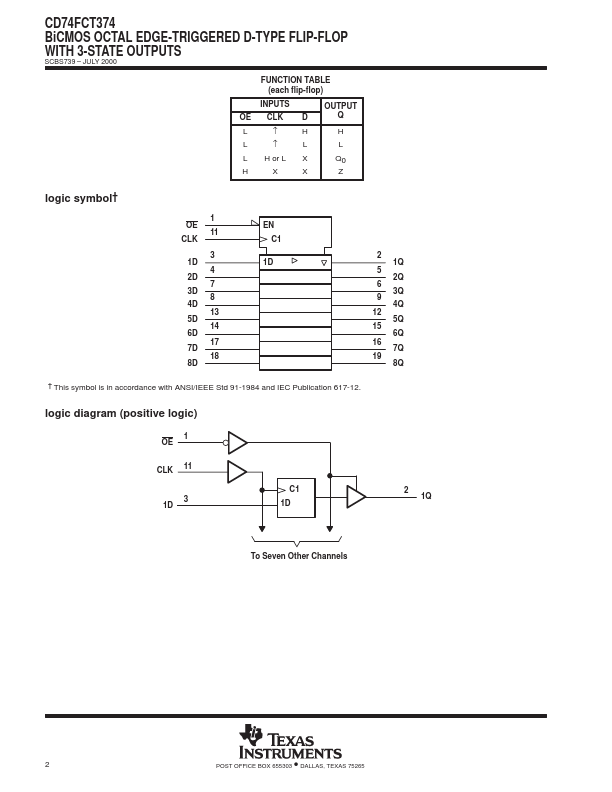

CD74FCT374 Datasheet Preview — Preview of CD74FCT374 PDF

Datasheet Specifications

Part number: CD74FCT374
Manufacturer: Texas Instruments ↗
File Size: 488.59 KB
Datasheet: CD74FCT374-etcTI.pdf
Description: BiCMOS OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOP

Features

* 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. This device is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. The output stage is a combination of bipolar and CMOS transistor

Applications

* of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessari
