CY74FCT2244T

8-BIT BUFFER/LINE DRIVER

CY74FCT2244T General Description

The CY74FCT2244T is an octal buffer and line driver that includes on-chip 25-Ω terminating resistors at each of the outputs to minimize noise resulting from reflections or standing waves in high-performance applications. The on-chip resistors reduce overall board space and component count. Designed .

CY74FCT2244T Datasheet (1.08 MB)

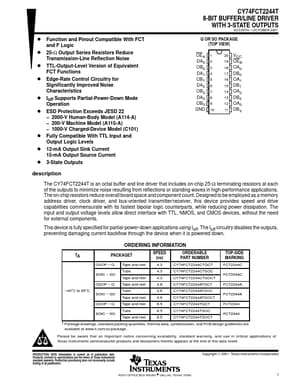

Preview of CY74FCT2244T PDF

Datasheet Details

Part number:

CY74FCT2244T

Manufacturer:

Texas Instruments ↗

File Size:

1.08 MB

Description:

8-bit buffer/line driver.
D Function and Pinout Compatible With FCT and F Logic D 25-Ω Output Series Resistors Reduce Transmission-Line Reflection Noise D TTL-Output-Level Vers.
