DAC5311-Q1 D/A Converter

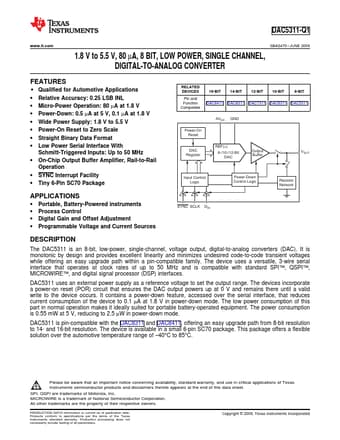

📥 Download Datasheet Datasheet Preview Page 1

Description

DAC5311-Q1 www.ti.com SBAS470 * JUNE 2009 1.8 V to 5.5 V, 80 µA, 8 BIT, LOW POWER, SINGLE CHANNEL, DIGITAL-TO-ANALOG CONVERTER .
The DAC5311 is an 8-bit, low-power, single-channel, voltage output, digital-to-analog converters (DAC).

📥 Download Datasheet

Preview of DAC5311-Q1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* 1

Applications

* Relative Accuracy: 0.25 LSB INL
* Micro-Power Operation: 80 µA at 1.8 V
* Power-Down: 0.5 µA at 5 V, 0.1 µA at 1.8 V
* Wide Power Supply: 1.8 V to 5.5 V
* Power-On Reset to Zero Scale
* Straight Binary Data Format
* Low Power Serial Interface
