DCR011205P, DCR010503 Datasheet - Texas Instruments

DCR011205P Regulated DC/DC Converter

The DCR01 family is a series of high-efficiency, input-isolated, output-regulated DC/DC converters. In addition to 1-W nominal, galvanically-isolated output power capability, this range of DC/DC converters offer very low output noise, thermal protection, and high accuracy. This combination of featur.

DCR011205P Features

* 1-kV isolation (operational): 1-second test

* Continuous voltage applied across isolation barrier: 60 VDC, 42.5 VAC

* UL1950 recognized component

* 10-pin PDIP and 12-pin SOP packages

* Input voltage: 5 V, 12 V, or 24 V

* Output voltage: 3.3 V or 5 V

DCR010503-etcTI.pdf

This datasheet PDF includes multiple part numbers: DCR011205P, DCR010503. Please refer to the document for exact specifications by model.

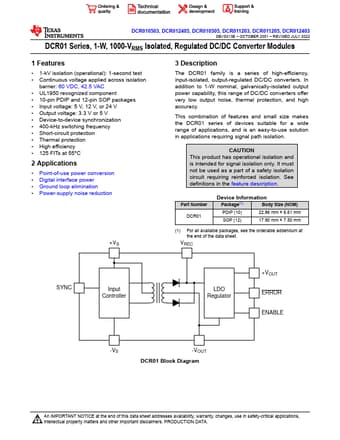

DCR011205P Datasheet Preview Page 2 DCR011205P Datasheet Preview Page 3

Datasheet Details

Part number:

DCR011205P, DCR010503

Manufacturer:

Texas Instruments ↗

File Size:

1.33 MB

Description:

Regulated dc/dc converter.

Note:

This datasheet PDF includes multiple part numbers: DCR011205P, DCR010503.
Please refer to the document for exact specifications by model.
