DRV5055 Datasheet - Texas Instruments

DRV5055 Ratiometric Linear Hall Effect Sensor

The DRV5055 is a linear Hall effect sensor that responds proportionally to magnetic flux density. The device can be used for accurate position sensing in a wide range of applications. The device operates from 3.3-V or 5-V power supplies. When no magnetic field is present, the analog output drives .

DRV5055 Features

* Ratiometric Linear Hall Effect Magnetic Sensor

* Operates From 3.3-V and 5-V Power Supplies

* Analog Output With VCC / 2 Quiescent Offset

* Magnetic Sensitivity Options (At VCC = 5 V):

* A1/Z1: 100 mV/mT, ±21-mT Range

* A2/Z2: 50 mV/mT, ±42-mT Range

DRV5055-etcTI.pdf

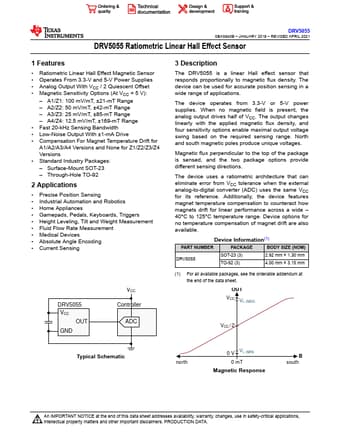

Preview of DRV5055 PDF
DRV5055 Datasheet Preview Page 2 DRV5055 Datasheet Preview Page 3

Datasheet Details

Part number:

DRV5055

Manufacturer:

Texas Instruments ↗

File Size:

1.82 MB

Description:

Ratiometric linear hall effect sensor.
