DS125RT410

Low-Power Multi-Rate Quad-Channel Retimer

DS125RT410 Features

* 1 Each Channel Independently Locks to Data Rates From 9.8 to 12.5 Gbps and Submultiples

* Fast Lock Operation Based on Protocol-Select Mode

* Low Latency (≈300 ps)

* Adaptive Equalization up to 34-dB Boost at 5 GHz

* Adjustable Transmit VOD: 600 to 1300 mVp-p

DS125RT410 General Description

The DS125RT410 is a four-channel retimer with integrated signal conditioning. The device includes a fully adaptive continuous-time linear equalizer (CTLE), clock and data recovery (CDR), and a transmit de-emphasis (DE) driver to enable data transmission over long, lossy and crosstalk-impaired highsp.

DS125RT410 Datasheet (2.30 MB)

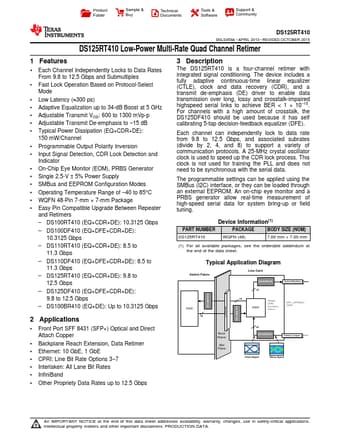

Preview of DS125RT410 PDF

Datasheet Details

Part number:

DS125RT410

Manufacturer:

Texas Instruments ↗

File Size:

2.30 MB

Description:

Low-power multi-rate quad-channel retimer.
