DS160PT801 Datasheet - Texas Instruments

DS160PT801 8-Lane 16-Channel Retimer

A_PETn0 . A_PETp0 . . A_PETn7 A_PETp7 B_PERn0 . B_PERp0 . . B_PERn7 B_PERp7 The DS160PT801 is a high-performance eight-lane 100 MHz (16-channel) PCI-Express protocol-aware retimer supporting all standard PCIe data rates up to 16 Address straps GT/s. It is used to extend the reach and robustnes.

DS160PT801 Features

* 8-lane (16-channel) protocol-aware PCI-express retimer supporting 16.0, 8.0, 5.0, and 2.5 GT/s interfaces

* Inter-chip communication (ICC) enable dual chip link width scaling to form 16-lane Gen-4 retimer

* Supports common clock, separate reference clock with no spread spec

DS160PT801-etcTI.pdf

Preview of DS160PT801 PDF

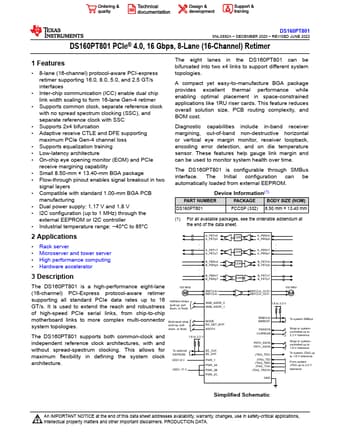

DS160PT801 Datasheet Preview Page 2 DS160PT801 Datasheet Preview Page 3

Datasheet Details

Part number:

DS160PT801

Manufacturer:

Texas Instruments ↗

File Size:

657.58 KB

Description:

8-lane 16-channel retimer.
