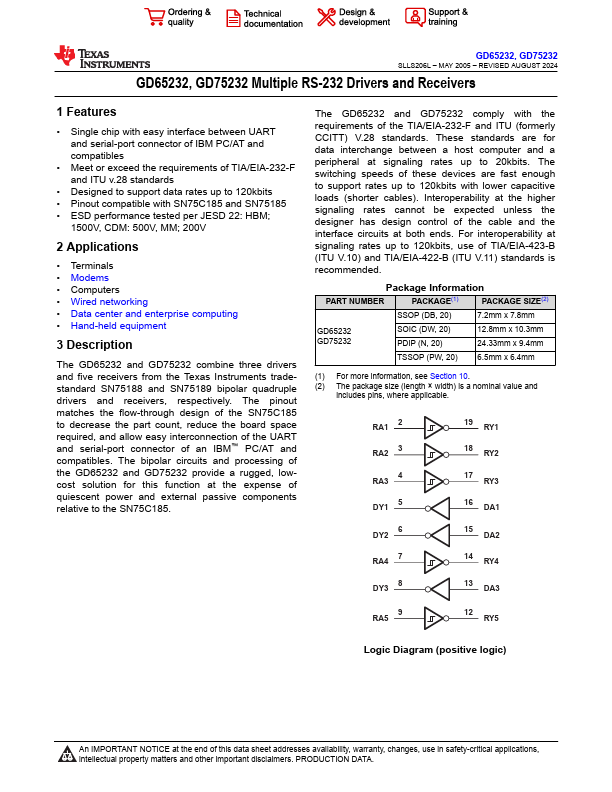

GD75232
Features
- Single chip with easy interface between UART and serial-port connector of IBM PC/AT and patibles
- Meet or exceed the requirements of TIA/EIA-232-F and ITU v.28 standards
- Designed to support data rates up to 120kbits
- Pinout patible with SN75C185 and SN75185
- ESD performance tested per JESD 22: HBM;
1500V, CDM: 500V, MM; 200V
2 Applications
- Terminals
- Modems
- puters
- Wired networking
- Data center and enterprise puting
- Hand-held equipment
3 Description
The GD65232 and GD75232 bine three drivers and five receivers from the Texas Instruments tradestandard SN75188 and SN75189 bipolar quadruple drivers and receivers, respectively. The pinout matches the flow-through design of the SN75C185 to decrease the part count, reduce the board space required, and allow easy interconnection of the UART and serial-port connector of an IBM™ PC/AT and patibles. The bipolar circuits and processing of the GD65232 and GD75232 provide a rugged, lowcost solution for this function at the...
