GD75323 Datasheet - Texas Instruments

GD75323 - MULTIPLE RS-232 DRIVERS AND RECEIVERS

The GD75323 combines five drivers and three receivers from the trade-standard SN75188 and SN75189 bipolar quadruple drivers and receivers, respectively.

The flow-through design of the GD75323 decreases the part count, reduces the board space required, and allows easy interconnection of the UART and

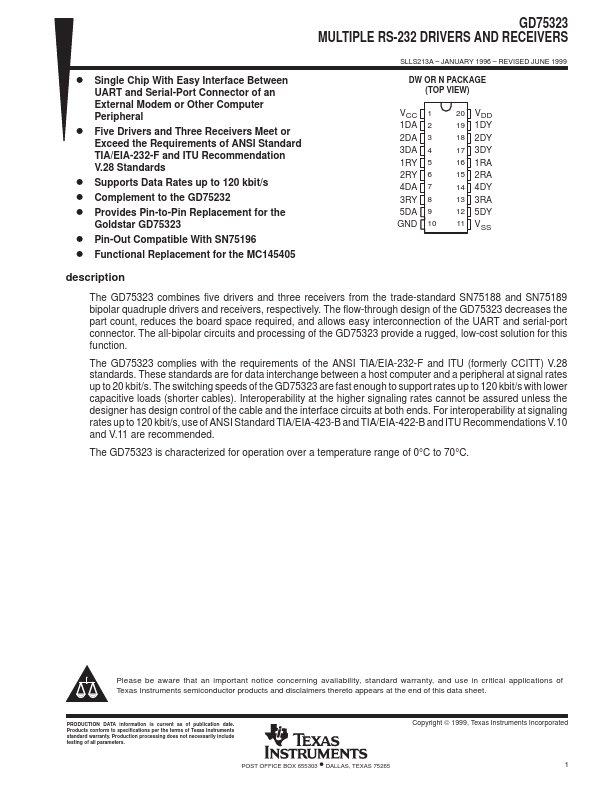

GD75323 MULTIPLE RS-232 DRIVERS AND RECEIVERS D Single Chip With Easy Interface Between UART and Serial-Port Connector of an External Modem or Other Computer Peripheral D Five Drivers and Three Receivers Meet or Exceed the Requirements of ANSI Standard TIA/EIA-232-F and ITU Recommendation V.28 Standards D Supports Data Rates up to 120 kbit/s D Complement to the GD75232 D Provides Pin-to-Pin Replacement for the Goldstar GD75323 D Pin-Out Compatible With SN75196 D Functional Replacement for the M

GD75323-etcTI.pdf

Preview of GD75323 PDF

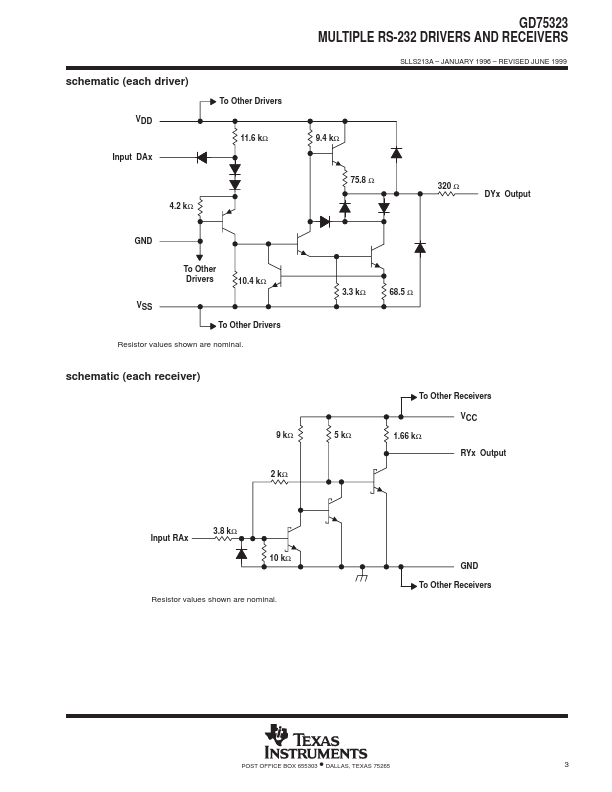

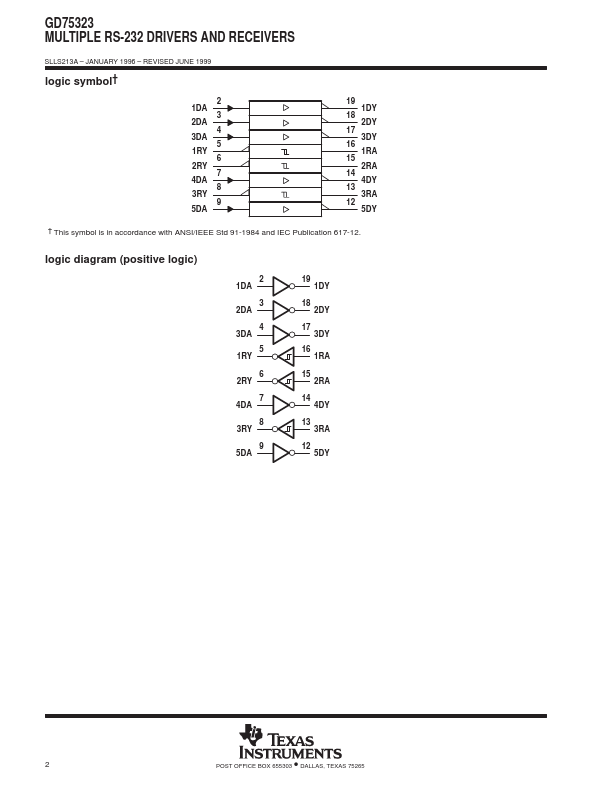

GD75323 Datasheet Preview Page 2 GD75323 Datasheet Preview Page 3

Datasheet Details

Part number:

GD75323

Manufacturer:

Texas Instruments ↗

File Size:

599.30 KB

Description:

Multiple rs-232 drivers and receivers.
