HD3SS3212

Two-Channel Differential 2:1/1:2 USB3.1 Mux/Demux

HD3SS3212 Features

* 1 Provides MUX/DEMUX Solution for USB TypeC™ Ecosystem for USB 3.1 Gen 1 and Gen 2 Data Rates

* Compatible With MIPI DSI/CSI, FPDLinkIII, LVDS, and PCIE Gen II, III

* Operates up to 10 Gbps

* Wide

* 3-dB Differential BW of over 8 GHz

* Excellent Dynami

HD3SS3212 General Description

The HD3SS3212 is a high-speed bidirectional passive switch in mux or demux configurations suited for USB Type-C™ application supporting USB 3.1 Gen 1 and Gen 2 data rates. Based on control pin SEL, the device provides switching on differential channels between Port B or Port C to Port A. The HD3SS32.

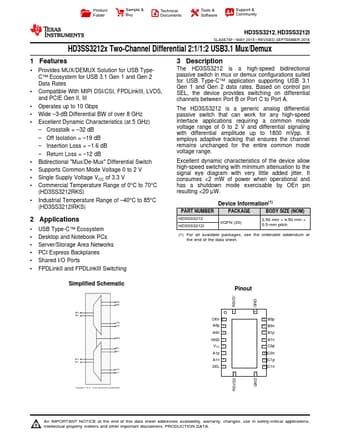

HD3SS3212 Datasheet (1.06 MB)

Preview of HD3SS3212 PDF

Datasheet Details

Part number:

HD3SS3212

Manufacturer:

Texas Instruments ↗

File Size:

1.06 MB

Description:

Two-channel differential 2:1/1:2 usb3.1 mux/demux.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community HD3SS3212, HD3SS3212I SLASE74F

* MAY 2015

* .

📁 Related Datasheet

HD3SS3212I - Two-Channel Differential 2:1/1:2 USB3.1 Mux/Demux (Texas Instruments)
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community HD3SS3212, HD3SS3212I SLASE74F – MAY 2015 – REVISED SEPTEMBE.

HD3SS3220 - USB Type-C DRP Port Controller with SuperSpeed 2:1 MUX (ETCTI)
.

HD3SS3411 - One Channel Differential 2:1 Mux/Demux (ETCTI)
.

HD3SS3411-Q1 - HD3SS3411-Q1 One Channel Differential 2:1 Mux/Demux (Rev. A) (ETCTI)
.

HD3SS3412 - 4-Channel High-Performance Differential Switch (Rev. E) (ETCTI)
.

HD3SS3415 - 4-Channel High-Performance Differential Switch (Rev. C) (ETCTI)
.

HD3SS0001 - Thunderbolt DisplayPort Differential Switch (ETCTI)
.

HD3SS212 - 5.4Gbps DisplayPort 1.2 2-to-1 Differential Switch (Rev. B) (ETCTI)
.
