INA1650 - High Common-Mode Rejection Line Receivers

Texas Instruments

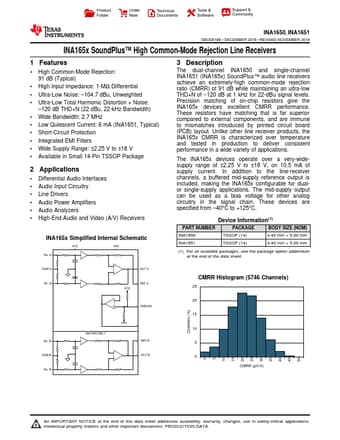

INA1650 Datasheet Preview — Preview of INA1650 PDF

Datasheet Details

Part number	INA1650
Manufacturer	Texas Instruments ↗
File Size	2.27 MB
Description	High Common-Mode Rejection Line Receivers
Datasheet	INA1650-etcTI.pdf

INA1650 Product details

Description

The dual-channel INA1650 and single-channel INA1651 (INA165x) SoundPlus™ audio line receivers achieve an extremely-high common-mode rejection ratio (CMRR) of 91 dB while maintaining an ultra-low THD+N of 120 dB at 1 kHz for 22-dBu signal levels.

Features

1 High Common-Mode Rejection: 91 dB (Typical).
High Input Impedance: 1-MΩ Differential.
Ultra-Low Noise:.
104.7 dBu, Unweighted.
Ultra-Low Total Harmonic Distortion + Noise:.
120 dB THD+N (22 dBu, 22-kHz Bandwidth).
Wide Bandwidth: 2.7 MHz.
Low Quiescent Current: 6 mA (INA1651, Typical).
Short-Circuit Protection.
Integrated EMI Filters.
Wide Supply Range: ±2.25 V to ±18 V.
Available in Small.
