INA212 Datasheet PDF - Texas Instruments Current-Shunt Monitors Specs

INA212 - Current-Shunt Monitors

This page provides the datasheet information for the INA212, a member of the INA210 Current-Shunt Monitors family.

Datasheet Summary

Description

The INA21x are voltage-output, current-shunt monitors (also called current-sense amplifiers) that are commonly used for overcurrent protection, precision-current measurement for system optimization, or in closed-loop feedback circuits.

Features

Updated format to match new TI layout and flow. Tables, figures and cross-references use a new numbering sequence throughout the document. Wide Common-Mode Range:.
0.3 V to 26 V.
Offset Voltage: ±35 μV (Maximum, INA210) (Enables Shunt Drops of 10-mV Full-Scale).
Accuracy:.
Gain Error (Maximum Over Temperature):.
±0.5% (Version C).
±1% (Versions A and B).
0.5-µV/°C Offset Drift (Maximum).
10-ppm/°C Gain Drift (Maximu.

Datasheet Details

Part number	INA212
Manufacturer	Texas Instruments
File Size	1.54 MB
Description	Current-Shunt Monitors
Datasheet	INA212 Datasheet
Additional preview pages of the INA212 datasheet.

📁 Similar Datasheet

INA2126 - MicroPOWER INSTRUMENTATION AMPLIFIER (Burr-Brown Corporation)

INA2128 - INSTRUMENTATION AMPLIFIER (Burr-Brown Corporation)

INA2132 - DIFFERENCE AMPLIFIER (Burr-Brown Corporation)

INA2133 - DIFFERENCE AMPLIFIERS (Burr-Brown Corporation)

INA2134 - AUDIO DIFFERENTIAL LINE RECEIVERS (Burr-Brown Corporation)

INA2137 - AUDIO DIFFERENTIAL LINE RECEIVERS (Burr-Brown Corporation)

INA2141 - INSTRUMENTATION AMPLIFIER (Burr-Brown Corporation)

INA2143 - DIFFERENCE AMPLIFIERS (Burr-Brown Corporation)

INA200 - (INA200 - INA202) High-Side Measurement Current-Shunt Monitor (Burr-Brown)

INA201 - (INA200 - INA202) High-Side Measurement Current-Shunt Monitor (Burr-Brown)

Full PDF Text Transcription

Click to expand full text

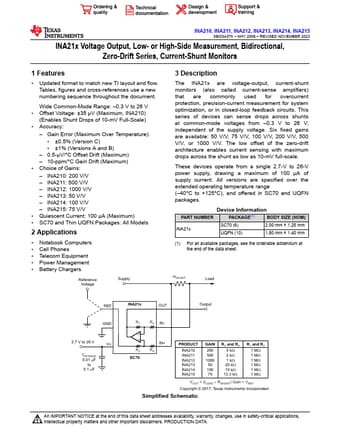

INA210, INA211, INA212, INA213, INA214, INA215 SBOS437K – MAY 2008 – REVISED NOVEMBER 2023 INA21x Voltage Output, Low- or High-Side Measurement, Bidirectional, Zero-Drift Series, Current-Shunt Monitors 1 Features • Updated format to match new TI layout and flow. Tables, figures and cross-references use a new numbering sequence throughout the document. Wide Common-Mode Range: –0.3 V to 26 V • Offset Voltage: ±35 μV (Maximum, INA210) (Enables Shunt Drops of 10-mV Full-Scale) • Accuracy: – Gain Error (Maximum Over Temperature): • ±0.5% (Version C) • ±1% (Versions A and B) – 0.
