ISO1044 Datasheet, Transceiver, Texas Instruments

ISO1044 Features

  • Transceiver
  • Meets the ISO 11898-2:2016 physical layer standard
  • Supports classic CAN up to 1 Mbps and FD (flexible data rate) up to 5 Mbps
  • Protection features


PDF File Details

Part number:

ISO1044

Manufacturer:

Texas Instruments ↗

File Size:

2.83MB

Download:

📄 Datasheet

Description:

Isolated can fd transceiver. The ISO1044B device is a galvanically-isolated controller area network (CAN) transceiver that meets the specifications of the ISO118

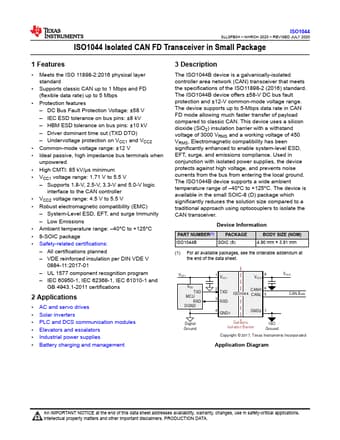

Datasheet Preview: ISO1044 📥 Download PDF (2.83MB)
Page 2 of ISO1044 Page 3 of ISO1044

ISO1044 Application

  • Applications
  • AC and servo drives
  • Solar inverters
  • PLC and DCS communication modules
  • Elevators and escalators
