Description

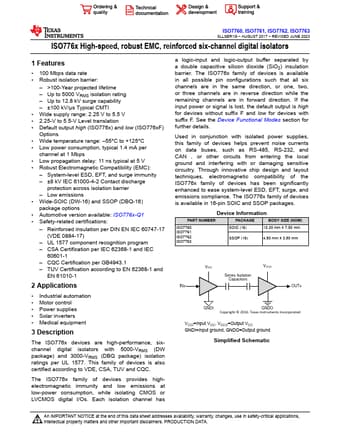

ISO7760, ISO7761, ISO7762, ISO7763 SLLSER1G * AUGUST 2017 * REVISED JUNE 2023 ISO776x High-speed, robust EMC, reinforced six-channel d.
The ISO776x devices are high-performance, sixchannel digital isolators with 5000-VRMS (DW package) and 3000-VRMS (DBQ package) isolation ratings per U.
Features
* 100 Mbps data rate
* Robust isolation barrier:
* >100-Year projected lifetime
* Up to 5000 VRMS isolation rating
* Up to 12.8 kV surge capability
* ±100 kV/μs Typical CMTI
* Wide supply range: 2.25 V to 5.5 V
* 2.25-V to 5.5-V Level t
Applications
* Industrial automation
* Motor control
* Power supplies
* Solar inverters
