LM20125 - Synchronous Buck Regulator

Description

The LM20125 is a full featured 500 kHz synchronous buck regulator capable of delivering up to 5A of continuous output current.

The current mode control loop can be compensated to be stable with virtually any type of output capacitor.

Features

  • 1.
  • 2 LM20125Q is AEC-Q100 Qualified and Manufactured on an Automotive Grade Flow.
  • Input Voltage Range 2.95V to 5.5V.
  • Accurate Current Limit Minimizes Inductor Size.
  • 97% Efficiency with 500 kHz Switching Frequency.
  • 32 mΩ Integrated FET Switches.
  • Starts up into Pre-Biased Loads.
  • Output Voltage Tracking.
  • Peak Current Mode Control.
  • Adjustable Output Voltage Down to 0.8V.
  • Adjustable Soft-Start with External Capac.

📥 Download Datasheet

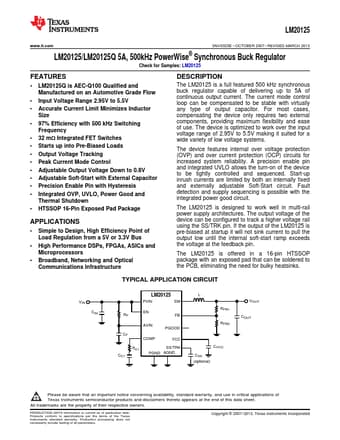

Datasheet preview – LM20125

Datasheet Details

Part number LM20125
Manufacturer Texas Instruments
File Size 975.03 KB
Description Synchronous Buck Regulator
Datasheet download datasheet LM20125 Datasheet
Additional preview pages of the LM20125 datasheet.

📁 Similar Datasheet

  • LM20125 - Synchronous Buck Regulator (National Semiconductor)
  • LM20123 - Synchronous Buck Regulator (National Semiconductor)
  • LM20124 - Synchronous Buck Regulator (National Semiconductor)
  • LM2016 - 3.0V Primary Lithium-Manganese Dioxide (DYNAMIS)
  • LM201A - Operational Amplifiers (National Semiconductor)
  • LM201A - Non Compensated Single Operational Amplifiers (ON Semiconductor)
  • LM201A - SINGLE OPERATIONAL AMPLIFIER (STMicroelectronics)
  • LM201A - OPERATIONAL AMPLIFIERS (Motorola)
  • LM201AV - Non Compensated Single Operational Amplifiers (ON Semiconductor)
  • LM201U02-A3C3 - Liquid Crystal Display (LG)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text
LM20125 www.ti.com SNVS525E – OCTOBER 2007 – REVISED MARCH 2013 LM20125/LM20125Q 5A, 500kHz PowerWise® Synchronous Buck Regulator Check for Samples: LM20125 FEATURES 1 •2 LM20125Q is AEC-Q100 Qualified and Manufactured on an Automotive Grade Flow • Input Voltage Range 2.95V to 5.5V • Accurate Current Limit Minimizes Inductor Size • 97% Efficiency with 500 kHz Switching Frequency • 32 mΩ Integrated FET Switches • Starts up into Pre-Biased Loads • Output Voltage Tracking • Peak Current Mode Control • Adjustable Output Voltage Down to 0.
