LM317-N-MIL - Wide Temperature Three-Pin Adjustable Regulator

Datasheet Summary

Description

The LM317-N-MIL adjustable 3-pin positive voltage regulator is capable of supplying in excess of 1.5 A over a 1.25-V to 37-V output range and a wide temperature range.

The LM317-N-MIL is easy to use and requires only two external resistors to set the output voltage.

Features

1 Typ. 0.1% Load Regulation.
Typ. 0.01%/V Line Regulation.
1.5-A Output Current.
Adjustable Output Down to 1.25 V.
Current Limit Constant With Temperature.
80-dB Ripple Rejection.
Short-Circuit Protected Output 2.

Datasheet Details

Part number	LM317-N-MIL
Manufacturer	Texas Instruments
File Size	3.31 MB
Description	Wide Temperature Three-Pin Adjustable Regulator
Datasheet	LM317-N-MIL Datasheet
Additional preview pages of the LM317-N-MIL datasheet.

📁 Similar Datasheet

LM317 - Adjustable Voltage Regulator (Inchange Semiconductor)

LM317 - Positive Voltage Regulator (Linear)

LM317 - 3-Terminal Adjustable Regulator (National Semiconductor)

LM317 - Positive Voltage Regulator (ON Semiconductor)

LM317 - 1.2V to 37V adjustable voltage regulators (STMicroelectronics)

LM317 - 3-Terminal Positive Adjustable Regulator (Fairchild Semiconductor)

LM317 - ADJUSTABLE VOLTAGE REGULATOR (UTC)

LM317A - Positive Voltage Regulator (Linear)

LM317A - MEDIUM CURRENT 1.2V TO 37V ADJUSTABLE VOLTAGE REGULATOR (UTC)

LM317B - 1.2V TO 37V VOLTAGE REGULATOR (STMicroelectronics)

Full PDF Text Transcription

Click to expand full text

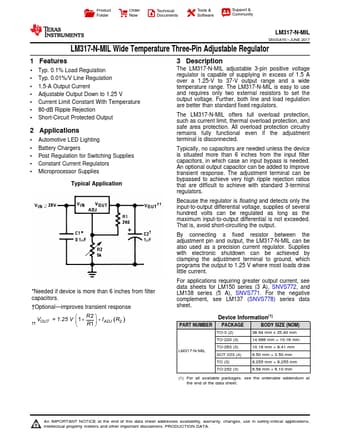

Product Folder Order Now Technical Documents Tools & Software Support & Community LM317-N-MIL SNVSAY0 – JUNE 2017 LM317-N-MIL Wide Temperature Three-Pin Adjustable Regulator 1 Features •1 Typ. 0.1% Load Regulation • Typ. 0.01%/V Line Regulation • 1.5-A Output Current • Adjustable Output Down to 1.25 V • Current Limit Constant With Temperature • 80-dB Ripple Rejection • Short-Circuit Protected Output 2 Applications • Automotive LED Lighting • Battery Chargers • Post Regulation for Switching Supplies • Constant Current Regulators • Microprocessor Supplies Typical Application *Needed if device is more than 6 inches from filter capacitors. †Optional—improves transient response †† VOUT = 1.
