LM324-N-MIL - Quad-Operational Amplifier

Datasheet Summary

Description

The LM324-N-MIL device consists of four independent, high-gain, internally frequency compensated operational amplifiers designed to operate from a single power supply over a wide range of voltages.

Features

1 Internally Frequency Compensated for Unity Gain.
Large DC Voltage Gain 100 dB.
Wide Bandwidth (Unity Gain) 1 MHz (Temperature Compensated).
Wide Power Supply Range:.
Single Supply 3 V to 32 V.
or Dual Supplies ±1.5 V to ±16 V.
Very Low Supply Current Drain (700 μA).
Essentially Independent of Supply Voltage.
Low Input Biasing Current 45 nA (Temperature Compensated).
Low Input Offset Voltage 2 mV and Offset.

Datasheet Details

Part number	LM324-N-MIL
Manufacturer	Texas Instruments
File Size	1.71 MB
Description	Quad-Operational Amplifier
Datasheet	LM324-N-MIL Datasheet

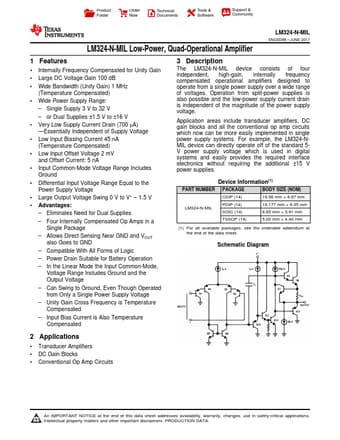

Additional preview pages of the LM324-N-MIL datasheet.

📁 Similar Datasheet

LM324 - Quad Low Power Operational Amplifier (Motorola Inc)

LM324 - Low Power Quad Operational Amplifiers (National Semiconductor)

LM324 - Quad Operational Amplifier (Fairchild Semiconductor)

LM324 - QUAD OPERATIONAL AMPLIFIERS (UTC)

LM324 - Single Supply Quad Operational Amplifier (ON Semiconductor)

LM324 - Low-power quad operational amplifiers (STMicroelectronics)

LM324 - Quad Operational Amplifiers (HTC)

LM324 - Low-Power 36V Op Amps (3Peak)

LM324A - Low power Quad OpAmp (NXP)

LM324A - Quad Operational Amplifier (Fairchild Semiconductor)

Full PDF Text Transcription

Click to expand full text

Product Folder Order Now Technical Documents Tools & Software Support & Community LM324-N-MIL Low-Power, Quad-Operational Amplifier LM324-N-MIL SNOSD66 – JUNE 2017 1 Features •1 Internally Frequency Compensated for Unity Gain • Large DC Voltage Gain 100 dB • Wide Bandwidth (Unity Gain) 1 MHz (Temperature Compensated) • Wide Power Supply Range: – Single Supply 3 V to 32 V – or Dual Supplies ±1.5 V to ±16 V • Very Low Supply Current Drain (700 μA) —Essentially Independent of Supply Voltage • Low Input Biasing Current 45 nA (Temperature Compensated) • Low Input Offset Voltage 2 mV and Offset Current: 5 nA • Input Common-Mode Voltage Range Includes Ground • Differential Input Voltage Range Equal to the Power Supply Voltage • Large Output Voltage Swing 0 V to V+ − 1.
