LM3406HV

1.5-A Constant Current Buck Regulator

Texas Instruments

LM3406HV Features

* 1 LM3406HV-Q1

* Automotive Grade Device

* AEC-Q100 Grade 1 Qualified

* Operating Ambient Temperature:

* 40°C to 125°C

* Integrated 2.0A MOSFET

* VIN Range 6V to 42V (LM3406)

* VIN Range 6V to 75V (LM3406HV)

* VIN Range 6V to 75V

LM3406HV General Description

The LM3406 family are monolithic switching regulators designed to deliver constant currents to high power LEDs. Ideal for automotive, industrial, and general lighting applications, they contain a high-side N-channel MOSFET switch with a current limit of 2.0A (typical) for step-down (Buck) regulators.

LM3406HV Datasheet (1.17 MB)

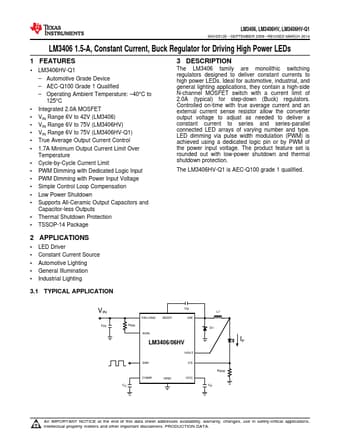

LM3406HV Datasheet Preview — Preview of LM3406HV PDF

Datasheet Details

Part number:

LM3406HV

Manufacturer:

Texas Instruments ↗

File Size:

1.17 MB

Description:

1.5-a constant current buck regulator.
LM3406, LM3406HV, LM3406HV-Q1 SNVS512E

* SEPTEMBER 2008

* REVISED MARCH 2014 LM3406 1.5-A, Constant Current, Buck Regulator for Drivin.
