LM36274

Four-Channel LCD Backlight Driver

LM36274 Features

* 1 Drives up to Four Parallel White LED Strings (29-V Maximum VOUT)

* 11-Bit Exponential and Linear Dimming Control

* PWM and I2C Brightness Control

* Backlight Operation With 4.7-µH to 15-µH Inductor

* Backlight and LCD Bias Efficiency up to 92%

* Pro

LM36274 General Description

The LM36274 is an integrated four-channel WLED driver and LCD bias supply. The ultra-compact size, high efficiency, high level of integration, and programmability allow the LM36274 to address a variety of applications without the need for hardware changes while minimizing the overall solution area. .

LM36274 Datasheet (5.38 MB)

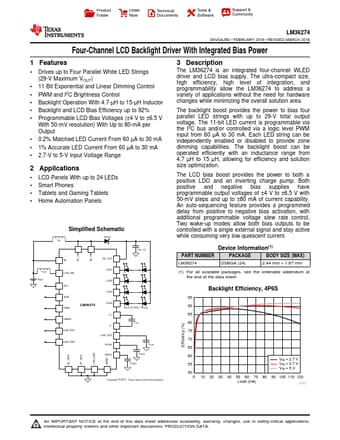

Preview of LM36274 PDF

Datasheet Details

Part number:

LM36274

Manufacturer:

Texas Instruments ↗

File Size:

5.38 MB

Description:

Four-channel lcd backlight driver.
Product Folder Order Now Technical Documents Tools & Software Support & Community LM36274 SNVSAJ9D

* FEBRUARY 2016

* REVISED MARC.
