LM4802B - Audio Power Amplifier

Datasheet Summary

The LM4802B integrates a Boost Converter with an Audio Power Amplifier to drive Ceramic Speakers in portable applications.

When powered by a 3V supply, it is capable of forcing 12Vp-p across a 2μF + 30Ω bridge-tied-load (BTL) with less than 1% THD+N.

1.
23 Pop & Click Circuitry Eliminates Noise During Turn-On and Turn-Off Transitions.
Low, 2μA (Max) Shutdown Current.
Low, 12mA (Typ) Quiescent Current.
12Vp-p Mono BTL Output, Load = 2μF + 30Ω, VDD = 3V.
Short Circuit Protection.
Unity-Gain Stable.
External Gain Configuration Capability.

Texas Instruments

Part number	LM4802B
Manufacturer	Texas Instruments
File Size	1.20 MB
Description	Audio Power Amplifier
Datasheet	LM4802B Datasheet

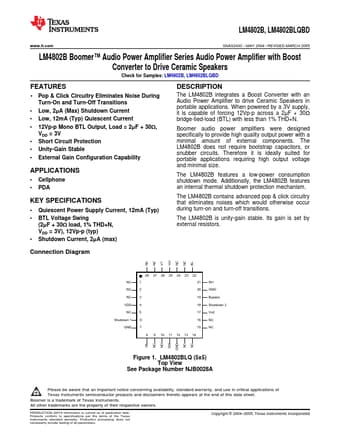

Additional preview pages of the LM4802B datasheet.
