LM4819MBD, LM4819 - 350mW Audio Power Amplifier

LM4819MBD Description

LM4819, LM4819MBD www.ti.com SNAS133D * FEBRUARY 2001 * REVISED MARCH 2013 LM4819 350mW Audio Power Amplifier with Shutdown Mode Ch.
The LM4819 is a mono bridged power amplifier that is capable of delivering 350mWRMS output power into a 16Ω load or 300mWRMS output power into an 8Ω l.

LM4819MBD Features

* 1
* 2 WSON, SOIC, and VSSOP Surface Mount Packaging
* Switch On/Off Click Suppression
* Unity-Gain Stable
* Minimum External Components KEY SPECIFICATIONS
* THD+N at 1kHz, 350mW Continuous Average Output Power into 16Ω: 10% (max)
* THD+N at 1kHz, 300mW

LM4819MBD Applications

* General Purpose Audio
* Portable Electronic Devices

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LM4819MBD, LM4819. Please refer to the document for exact specifications by model.

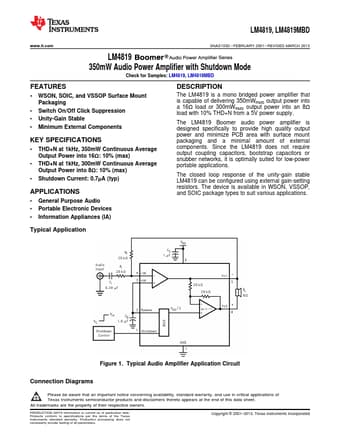

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM4819MBD, LM4819
Manufacturer
Texas Instruments ↗
File Size
1.77 MB
Datasheet
LM4819-etcTI.pdf
Description
350mW Audio Power Amplifier
Note
This datasheet PDF includes multiple part numbers: LM4819MBD, LM4819.
Please refer to the document for exact specifications by model.
