LM60-Q1 - SOT-23 Temperature Sensor

Datasheet Summary

Description

The LM60-Q1 device is a precision integrated-circuit temperature sensor that can sense a

40°C to +125°C temperature range while operating from a single 2.7-V supply.

Features

  • 1 AEC-Q100 Qualified for Automotive.

📥 Download Datasheet

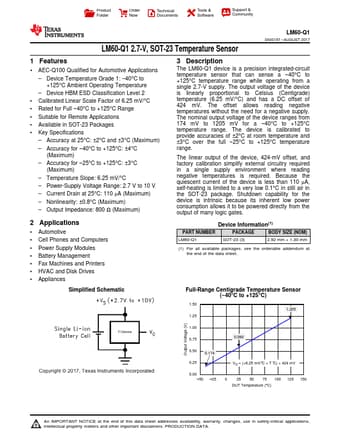

Datasheet preview – LM60-Q1

Datasheet Details

Part number LM60-Q1
Manufacturer Texas Instruments
File Size 1.27 MB
Description SOT-23 Temperature Sensor
Datasheet download datasheet LM60-Q1 Datasheet
Additional preview pages of the LM60-Q1 datasheet.

📁 Similar Datasheet

Other Datasheets by Texas Instruments
  • LM60 - SOT-23 or TO-92 Temperature Sensor
  • LM60430-Q1 - Ultra-Small Synchronous Step-Down Converter
  • LM60440-Q1 - Ultra-Small Synchronous Step-Down Converter
  • LM61 - SOT-23 or TO-92 Temperature Sensor
  • LM6132 - Low Power 10 MHz Rail-to-Rail I/O Operational Amplifiers
  • LM6134 - Low Power 10 MHz Rail-to-Rail I/O Operational Amplifiers
  • LM6142 - Rail-to-Rail Input-Output Operational Amplifiers
  • LM6144 - Rail-to-Rail Input-Output Operational Amplifiers

Full PDF Text Transcription

Click to expand full text
Product Folder Order Now Technical Documents Tools & Software Support & Community LM60-Q1 2.7-V, SOT-23 Temperature Sensor LM60-Q1 SNIS197 – AUGUST 2017 1 Features •1 AEC-Q100 Qualified for Automotive Applications – Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature – Device HBM ESD Classification Level 2 • Calibrated Linear Scale Factor of 6.25 mV/°C • Rated for Full −40°C to +125°C Range • Suitable for Remote Applications • Available in SOT-23 Packages • Key Specifications – Accuracy at 25°C: ±2°C and ±3°C (Maximum) – Accuracy for −40°C to +125°C: ±4°C (Maximum) – Accuracy for −25°C to +125°C: ±3°C (Maximum) – Temperature Slope: 6.25 mV/°C – Power-Supply Voltage Range: 2.7 V to 10 V – Current Drain at 25°C: 110 μA (Maximum) – Nonlinearity: ±0.
