LM74A SPI/MICROWIRE 12-Bit Plus Sign Temperature Sensor

LM74A Description

LM74A www.ti.com SNIS123D * JULY 2001 * REVISED MAY 2013 LM74A SPI/MICROWIRE 12-Bit Plus Sign Temperature Sensor (LM74 in Die Form).
The LM74A is a temperature sensor, Delta-Sigma analog-to-digital converter with an SPI and MICROWIRE compatible interface in die form.

LM74A Features

* 1
* 2 0.0625°C Temperature Resolution
* Shutdown Mode Conserves Power between Temperature Reading
* SPI and MICROWIRE Bus Interface
* LM74 is also Available in a 5-Bump DSBGA and 8-pin SOIC KEY SPECIFICATIONS
* Supply Voltage
* LM74A-5: 4.5V to 5.5V

LM74A Applications

* System Thermal Management
* Personal Computers
* Disk Drives
* Office Electronics

📥 Download Datasheet

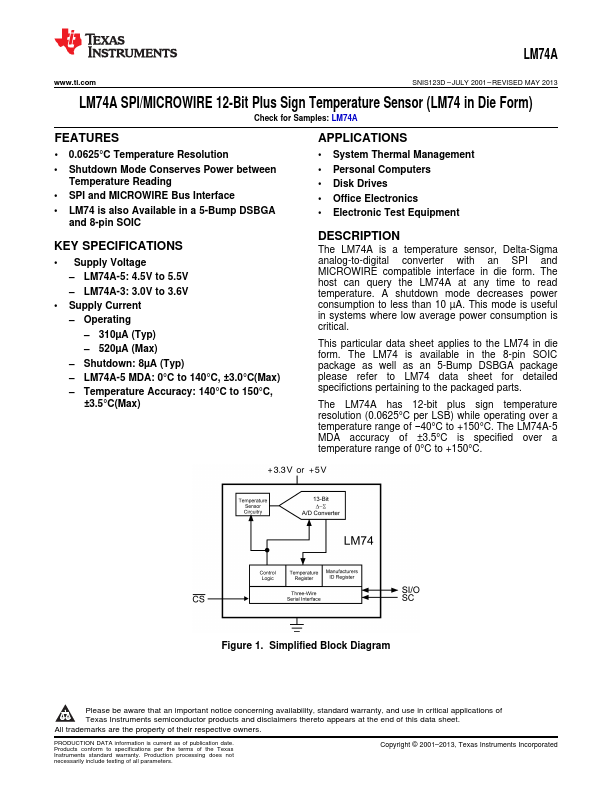

Preview of LM74A PDF

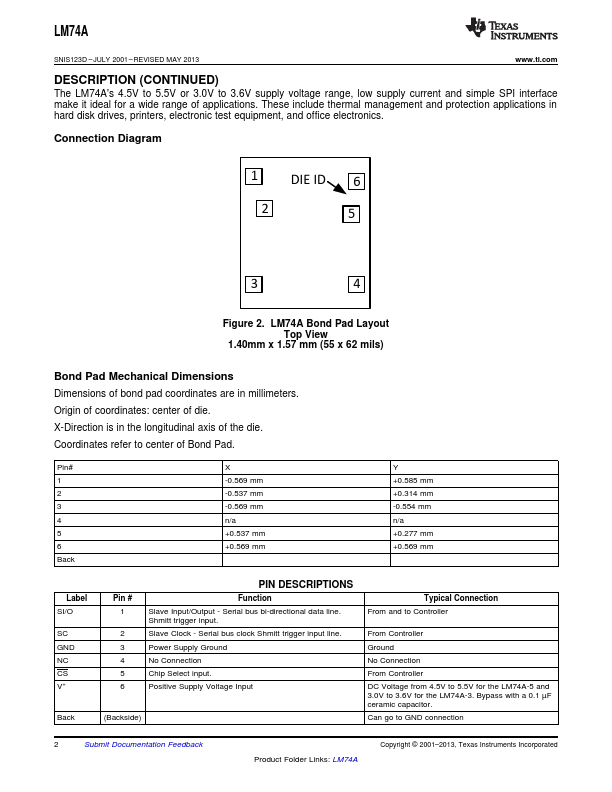

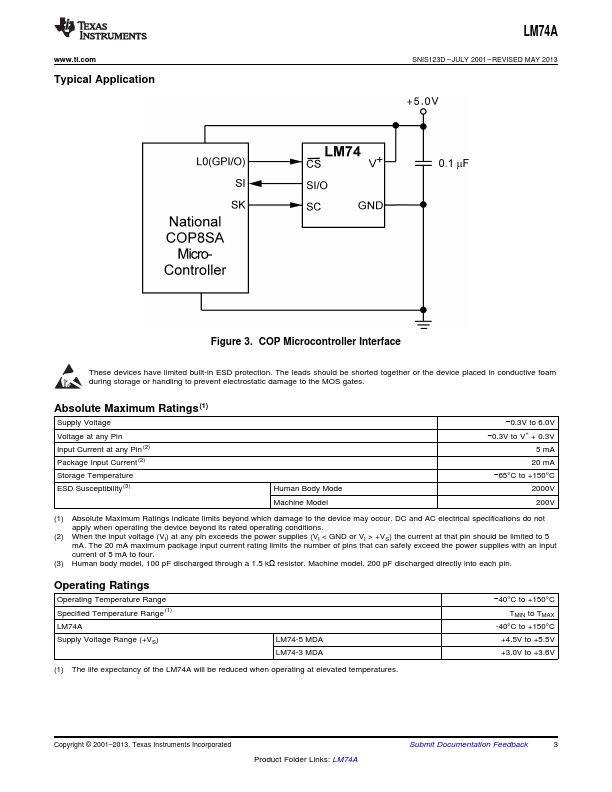

datasheet Preview Page 2 datasheet Preview Page 3
