LM78L05ACZ

100-mA Fixed Output Linear Regulator

LM78L05ACZ Features

* 1 For lower cost alternative, see the UA78L

* Input voltage up to 30 V

* Output voltage tolerances of ±5% over the temperature range

* Available output voltages: 5 V, 6.2 V, 8.2 V, 9 V, 12 V, and 15 V

* Output current of 100 mA

* Output transistor saf

LM78L05ACZ General Description

The LM78L series (LM78Lxx throughout this document) of three terminal positive regulators is available with several fixed output voltages, making them useful in a wide range of applications. Used as a Zener-diode and resistor combination replacement, the LM78Lxx usually provides an effective output .

LM78L05ACZ Datasheet (1.78 MB)

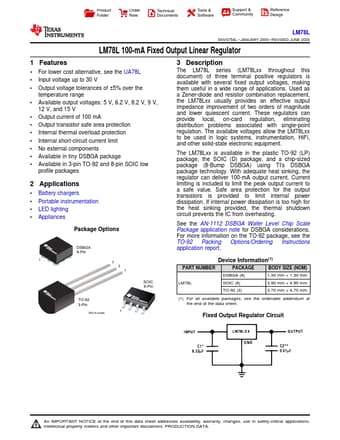

Preview of LM78L05ACZ PDF
