LMP7709 Datasheet, Amplifiers, Texas Instruments

LMP7709 Features

• Amplifiers 1
• 23 Unless Otherwise Noted, Typical Values at VS = 5V.
• Input Offset Voltage (LMP7707) ±200 µV (Max)
• Input Offset Voltage (LMP7708/LMP7709) ±220 µV (Max)

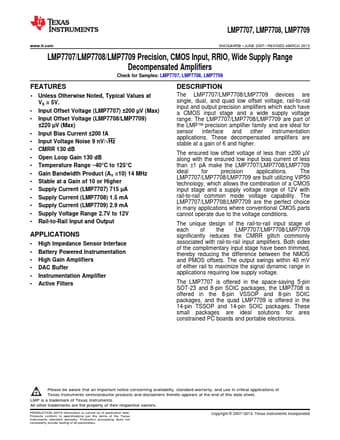

PDF File Details

Part number:

LMP7709

Manufacturer:

Texas Instruments ↗

File Size:

1.86MB

Download:

📄 Datasheet

Description:

Wide supply range decompensated amplifiers. The LMP7707/LMP7708/LMP7709 devices are single, dual, and quad low offset voltage, rail-to-rail input and output precision amplifiers

LMP7709 Application

• Applications
• High Impedance Sensor Interface
• Battery Powered Instrumentation
• High Gain Amplifiers
• DAC Buffer
