LMP8278Q

Precision Current Sensing Amplifier

LMP8278Q Features

* 1

* 23 TCVos ±15μV/°C Max

* CMRR 80 dB Min

* Input Offset Voltage ±2 mV max

* CMVR

* 2V to 40V

* Operating Ambient Temperature Range

* 40°C to 125°C

* Single Supply Operation

* Min / Max Limits 100% Tested unless Otherwise Noted

LMP8278Q General Description

The LMP8278 is a fixed 14x gain precision current sense amplifier. The part amplifies and filters small differential signals in the presence of high common mode voltages. The part operates from a single 5V supply voltage. With an input common mode voltage range from -2V to +28V the gain is very prec.

LMP8278Q Datasheet (614.85 KB)

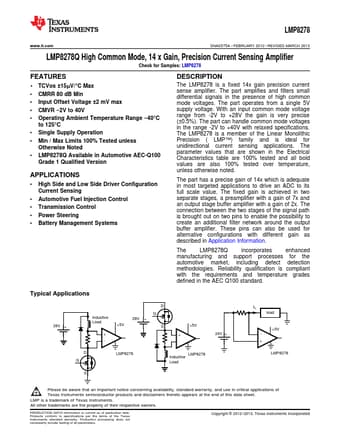

Preview of LMP8278Q PDF

Datasheet Details

Part number:

LMP8278Q

Manufacturer:

Texas Instruments ↗

File Size:

614.85 KB

Description:

Precision current sensing amplifier.
LMP8278 www.ti.com SNAS575A

* FEBRUARY 2012

* REVISED MARCH 2013 LMP8278Q High Common Mode, 14 x Gain, Precision Current Sensing Am.
