LMX2487E Frequency Synthesizers

The LMX2487E device is a low power, high performance delta-sigma fractional-N PLL with an auxiliary integer-N PLL. It is fabricated using TI’s advanced process. With delta-sigma architecture, fractional spurs at lower offset frequencies are pushed to higher frequencies outside the loop bandwidth. Th.

LMX2487E Features

* 1 Quadruple Modulus Prescaler for Lower Divids

* RF PLL: 16/17/20/21 or 32/33/36/37

* IF PLL: 8/9 or 16/17

* Advanced Delta Sigma Fractional Compensation

* 12-Bit or 22-Bit Selectable Fractional Modulus

* Up to 4th Order Programmable Delta-Sigma Modul

LMX2487E-etcTI.pdf

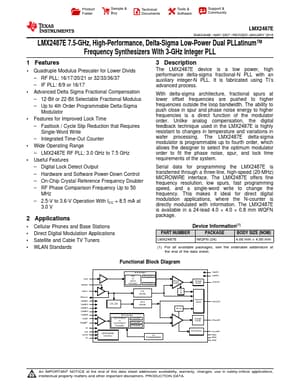

LMX2487E Datasheet Preview — Preview of LMX2487E PDF
