LP3907-Q1

Dual 1-A and 600-mA Buck Converters and Dual 300-mA LDO

LP3907-Q1 Features

* 1 Qualified for Automotive Applications

* AEC Q100-Qualified With the Following Results

* Device Temperature Grade 1:

* 40°C to +125°C Ambient Operating Temperature

* Input Voltage Range: 2.8 V to 5.5 V

* Compatible with Advanced Applications Processor

LP3907-Q1 General Description

The LP3907-Q1 device is a multi-function, programmable power management unit (PMU) optimized for low-power FPGAs, microprocessors, and DSPs. This device integrates two highly efficient 1-A, 600-mA step-down DC-DC converters with dynamic voltage scaling (DVS), two 300-mA linear regulators, and a 400-.

LP3907-Q1 Datasheet (4.18 MB)

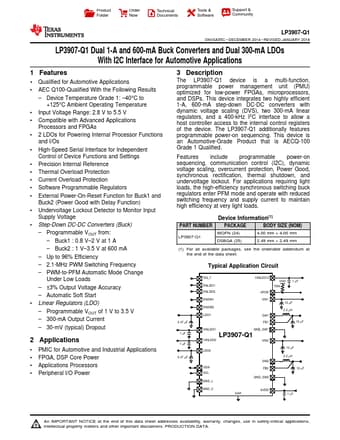

Preview of LP3907-Q1 PDF

Datasheet Details

Part number:

LP3907-Q1

Manufacturer:

Texas Instruments ↗

File Size:

4.18 MB

Description:

Dual 1-a and 600-ma buck converters and dual 300-ma ldo.
Product Folder Order Now Technical Documents Tools & Software Support & Community LP3907-Q1 SNVSA55C

* DECEMBER 2014

* REVISED JA.
