LVC00A

Quadruple 2-Input Positive-NAND Gate

LVC00A Features

* 1 Operate From 1.65 V to 3.6 V

* Specified From

* 40°C to 85°C,

* 40°C to 125°C, and

* 55°C to 125°C

* Inputs Accept Voltages to 5.5 V

* Max tpd of 4.3 ns at 3.3 V

* Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C

LVC00A General Description

The SN54LVC00A quadruple 2-input positive-NAND gate is designed for 2.7-V to 3.6-V VCC operation, and the SN74LVC00A quadruple 2-input positive-NAND gate is designed for 1.65-V to 3.6-V VCC operation. The SNx4LVC00A devices perform the Boolean function Y = A × B or Y = A + B in positive logic. Input.

LVC00A Datasheet (1.40 MB)

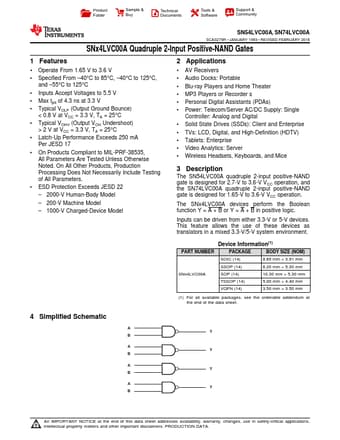

Preview of LVC00A PDF

Datasheet Details

Part number:

LVC00A

Manufacturer:

Texas Instruments ↗

File Size:

1.40 MB

Description:

Quadruple 2-input positive-nand gate.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community SN54LVC00A, SN74LVC00A SCAS279R

* JANUARY 1993
<.
