MSP430F2132 - Mixed-Signal Microcontroller

Texas Instruments

The MSP430F2132 by Texas Instruments is a Mixed-Signal Microcontroller. Below is the official datasheet preview.

📥 Download Datasheet

MSP430F2132 Mixed-Signal Microcontroller by Texas Instruments - Datasheet Preview — Official preview page of the **MSP430F2132** Mixed-Signal Microcontroller datasheet (Texas Instruments).

Datasheet Details

Part number	MSP430F2132
Manufacturer	Texas Instruments
File Size	2.46 MB
Description	Mixed-Signal Microcontroller
Datasheet	MSP430F2132-etcTI.pdf

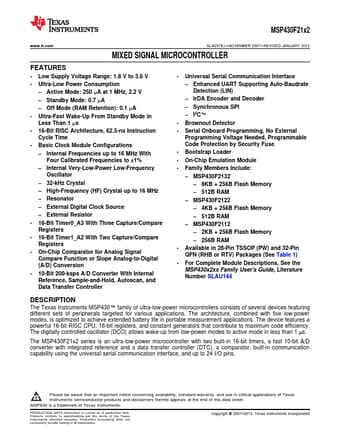

Additional preview pages of the MSP430F2132 datasheet.

MSP430F2132 Product details

Description

, See the MSP430x2xx Family User's Guide, Literature Number SLAU144 DESCRIPTION The Texas Instruments MSP430™ family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications.The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications.The device

Features

1.
2 Low Supply Voltage Range: 1.8 V to 3.6 V.
Ultra-Low Power Consumption.
Active Mode: 250 µA at 1 MHz, 2.2 V.
Standby Mode: 0.7 µA.
Off Mode (RAM Retention): 0.1 µA.
Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs.
16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time.
Basic Clock Module Configurations.
Internal Frequencies up to 16 MHz With Four Calibrated Frequencies to ±1%.
Internal Very-Low-.
