MSP430FR5986, MSP430FR6989 - Mixed-Signal Microcontrollers

Texas Instruments

The MSP430FR5986 by Texas Instruments is a Mixed-Signal Microcontrollers. Below is the official datasheet preview.

📥 Download Datasheet

MSP430FR5986 Mixed-Signal Microcontrollers by Texas Instruments - Datasheet Preview — Official preview page of the **MSP430FR5986** Mixed-Signal Microcontrollers datasheet (Texas Instruments).

Datasheet Details

Part number	MSP430FR5986, MSP430FR6989
Manufacturer	Texas Instruments
File Size	3.13 MB
Description	Mixed-Signal Microcontrollers
Datasheet	MSP430FR6989-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: MSP430FR5986, MSP430FR6989. Please refer to the document for exact specifications by model.

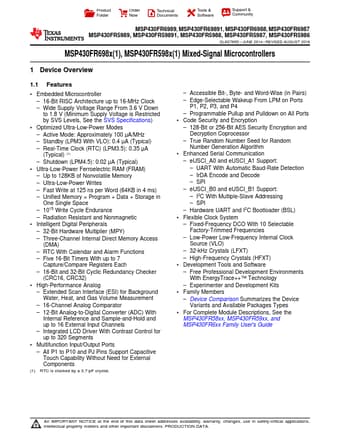

Additional preview pages of the MSP430FR5986 datasheet.

MSP430FR5986 Product details

Description

, See the MSP430FR58xx, MSP430FR59xx, and MSP430FR6xx Family User's Guide 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers.PRODUCTION DATA.MSP430FR6989, MSP430FR69891, MSP430FR6988, MSP430FR6987 MSP430FR5989, MSP430FR59891, MSP430FR5988, MSP430FR5987, MSP430FR5986 SLAS789D JUNE 2014 REVISED AUGUST 2018 www.ti.com 1.2 Applicatio

Features

1.
Embedded Microcontroller.
16-Bit RISC Architecture up to 16-MHz Clock.
Wide Supply Voltage Range From 3.6 V Down to 1.8 V (Minimum Supply Voltage is Restricted by SVS Levels, See the SVS Specifications).
Optimized Ultra-Low-Power Modes.
Active Mode: Approximately 100 µA/MHz.
Standby (LPM3 With VLO): 0.4 µA (Typical).
Real-Time Clock (RTC) (LPM3.5): 0.35 µA (Typical) (1).
Shutdown (LPM4.5): 0.02 µA (Typical).
Ultr.
