MSP430G2433, MSP430G2533 - Mixed-Signal Microcontrollers

Texas Instruments

📥 Download Datasheet

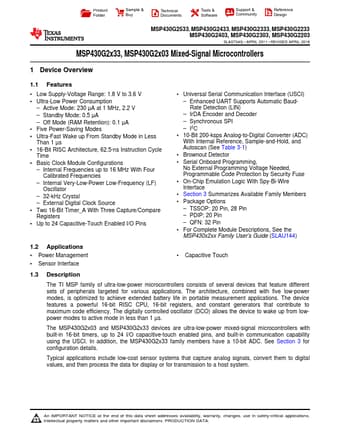

MSP430G2433 Datasheet Preview — This datasheet PDF includes multiple part numbers: MSP430G2433, MSP430G2533. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MSP430G2433, MSP430G2533
Manufacturer	Texas Instruments
File Size	2.61 MB
Description	Mixed-Signal Microcontrollers
Datasheet	MSP430G2533-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: MSP430G2433, MSP430G2533. Please refer to the document for exact specifications by model.

MSP430G2433 Product details

Description

, See the MSP430x2xx Family User’s Guide (SLAU144) 1.2 Applications Power Management Sensor Interface Capacitive Touch 1.3 Description The TI MSP family of ultra-low-power microcontrollers consists of several devices that feature different sets of peripherals targeted for various applications.The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications.The device

Features

1.
Low Supply-Voltage Range: 1.8 V to 3.6 V.
Ultra-Low Power Consumption.
Active Mode: 230 µA at 1 MHz, 2.2 V.
Standby Mode: 0.5 µA.
Off Mode (RAM Retention): 0.1 µA.
Five Power-Saving Modes.
Ultra-Fast Wake up From Standby Mode in Less Than 1 µs.
16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time.
Basic Clock Module Configurations.
Internal Frequencies up to 16 MHz With Four Calibrated Frequencies.
