ONET4211LD

155 Mbps to 4.25 Gbps LASER DRIVER

ONET4211LD Features

* 1

* Multirate Operation From 155 Mbps up to 4.25 Gbps

* Bias Current Programmable From 1 mA to 100 mA

* Modulation Current Programmable From 5 mA to 85 mA

* APC and Fault Detection

* Fault Mode Selection

* Bias and Photodiode Current Monitors

ONET4211LD General Description

The ONET4211LD is a laser driver for multiple fiber optic applications up to 4.25 Gbps. The device accepts CML input data and provides bias and modulation currents for driving a laser diode. Also provided are automatic power control (APC), temperature compensation of modulation current, fault detect.

ONET4211LD Datasheet (1.75 MB)

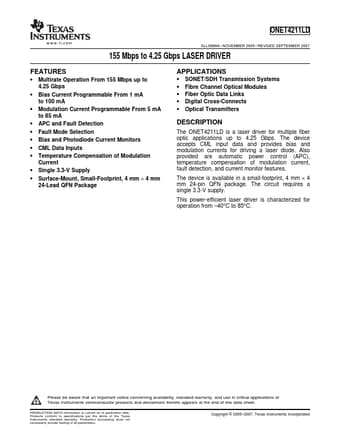

Preview of ONET4211LD PDF

Datasheet Details

Part number:

ONET4211LD

Manufacturer:

Texas Instruments ↗

File Size:

1.75 MB

Description:

155 mbps to 4.25 gbps laser driver.
