ONET8501V Datasheet, Driver, Texas Instruments

ONET8501V Features

  • Driver 1
  • Up to 11.3 Gbps Operation
  • 2-Wire Digital Interface
  • Digitally Selectable Modulation Current up to 24 mApp Differential
  • Digitally Selectable Bias

PDF File Details

Part number:

ONET8501V

Manufacturer:

Texas Instruments ↗

File Size:

1.39MB

Download:

📄 Datasheet

Description:

11.3 gbps differential vcsel driver. The ONET8501V is a high-speed, 3.3V laser driver designed to directly modulate VCSELs at data rates from 2 Gbps up to 11.3 Gbps. The

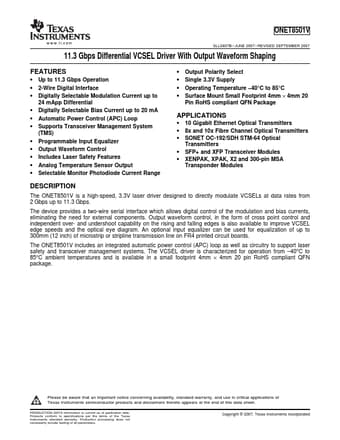

Datasheet Preview: ONET8501V 📥 Download PDF (1.39MB)
Page 2 of ONET8501V Page 3 of ONET8501V

ONET8501V Application

  • Applications
  • 10 Gigabit Ethernet Optical Transmitters
  • 8x and 10x Fibre Channel Optical Transmitters
  • SONET OC-192/SDH S
