OPA2187, OPA4187, 36-V Operational Amplifiers

Product Folder Order Now Technical Documents Tools & Software Support & Community Reference Design OPA187, OPA2187, OPA4187 SBOS807E * D.
The OPAx187 series operational amplifiers use autozeroing techniques to simultaneously provide lowoffset voltage (1 µV), and near zero drift over time.

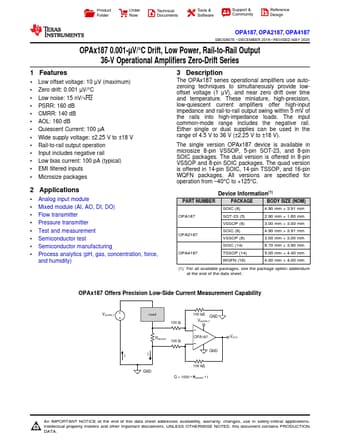

datasheet Preview Page 1 from Datasheet4u.com

OPA4187-etcTI.pdf

OPA2187 Datasheet Preview — This datasheet PDF includes multiple part numbers: OPA2187, OPA4187. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

OPA2187, OPA4187

Manufacturer:

Texas Instruments ↗

File Size:

2.81 MB

Description:

36-V Operational Amplifiers

Note:

This datasheet PDF includes multiple part numbers: OPA2187, OPA4187.
Please refer to the document for exact specifications by model.

Features

* 1 Low offset voltage: 10 µV (maximum)
* Zero drift: 0.001 µV/°C
* Low noise: 15 nV/√Hz
* PSRR: 160 dB
* CMRR: 140 dB
* AOL: 160 dB
* Quiescent Current: 100 µA
* Wide supply voltage: ±2.25 V to ±18 V
* Rail-to-rail output operat

Applications

* Analog input module
* Mixed module (AI, AO, DI, DO)
* Flow transmitter
* Pressure transmitter
* Test and measurement
* Semiconductor test
* Semiconductor manufacturing
* Process analytics (pH, gas, concentration, force, and humidity)
