OPA2836 - OPERATIONAL AMPLIFIER

Product Overview

Texas Instruments

Datasheet Details

Part number	OPA2836
Manufacturer	Texas Instruments
File Size	2.55 MB
Description	OPERATIONAL AMPLIFIER
Datasheet	OPA2836 Datasheet
Note	This datasheet PDF includes multiple part numbers: OPA2836, OPA836. Please refer to the document for exact specifications by model.

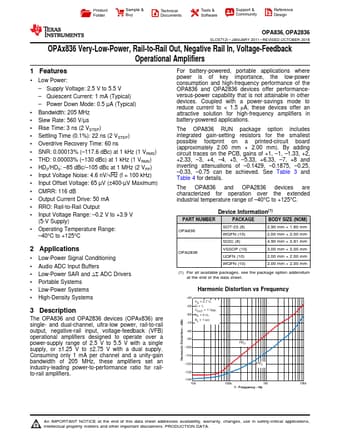

Additional preview pages of the OPA2836 datasheet.

Product details

Description

The OPA836 and OPA2836 devices (OPAx836) are single- and dual-channel, ultra-low power, rail-to-rail output, negative-rail input, voltage-feedback (VFB) operational amplifiers designed to operate over a power-supply range of 2.5 V to 5.5 V with a single supply, or ±1.25 V to ±2.75 V with a dual supply.

Features

1 Low Power:.
Supply Voltage: 2.5 V to 5.5 V.
Quiescent Current: 1 mA (Typical).
Power Down Mode: 0.5 µA (Typical).
Bandwidth: 205 MHz.
Slew Rate: 560 V/µs.
Rise Time: 3 ns (2 VSTEP).
Settling Time (0.1%): 22 ns (2 VSTEP).
Overdrive Recovery Time: 60 ns.
SNR: 0.00013% (.
117.6 dBc) at 1 kHz (1 VRMS).
THD: 0.00003% (.
130 dBc) at 1 kHz (1 VRMS).
HD2/HD3:.
85 dBc/.
