OPA828 - JFET-Input Operational Amplifiers

Description

The OPA828 and OPA2828 (OPAx828) JFET input operational amplifiers are the next generation OPA627 and OPA827, combining high speed with high dc precision and ac performance.

Features

  • Low input voltage noise density: 4 nV/√Hz at 1 kHz.
  • Input voltage noise: 0.1 Hz to 10 Hz: 60 nVRMS.
  • Low input bias current:.
  • 0.1 pA (DGN).
  • 1 pA (D).
  • Input offset voltage:.
  • 25 μV (DGN).
  • 50 μV (D).
  • Input offset drift:.
  • 0.2 μV/°C (DGN).
  • 0.45 μV/°C (D).
  • MUX-friendly inputs.
  • Gain bandwidth: 45 MHz.
  • Slew rate: 150 V/μs.
  • 14-bit settling time: 120 ns.
  • Overload.

📥 Download Datasheet

Datasheet preview – OPA828

Datasheet Details

Part number OPA828
Manufacturer Texas Instruments
File Size 3.04 MB
Description JFET-Input Operational Amplifiers
Datasheet download datasheet OPA828 Datasheet
Additional preview pages of the OPA828 datasheet.

📁 Similar Datasheet

  • OPA820 - Low-Power / Single-Supply / Wideband Operational Amplifier (Burr-Brown)
  • OPA827 - OPERATIONAL AMPLIFIER (Burr-Brown)
  • OPA830 - Low-Power / Single-Supply / Wideband Operational Amplifier (Burr-Brown)
  • OPA832 - Low-Power / Single-Supply / Fixed-Gain Video Buffer Amplifier (Burr-Brown)
  • OPA843 - Wideband / Low Distortion / Medium Gain / Voltage-Feedback OPERATIONAL AMPLIFIER (Burr-Brown)
  • OPA847 - Wideband / Ultra-Low Noise / Voltage-Feedback (Burr-Brown)
  • OPA860 - Wide Bandwidth OPERATIONAL TRANSCONDUCTANCE AMPLIFIER and BUFFER (Burr-Brown Corporation)
  • OPA883B - FET Input Military Operational AMplifier (Burr-Brown)
  • OPA890 - OPERATIONAL AMPLIFIER (Burr-Brown)
  • OPA1013 - Precision / Single-Supply DUAL OPERATIONAL AMPLIFIER (Burr-Brown)
Other Datasheets by Texas Instruments
  • OPA820 - Voltage-Feedback Operational Amplifier
  • OPA820-HT - Voltage-Feedback Operational Amplifier
  • OPA827 - JFET-Input Operational Amplifier
  • OPA817 - FET-Input Operational Amplifier
  • OPA818 - Operational Amplifier
  • OPA830 - OPERATIONAL AMPLIFIER
  • OPA830-EP - OPERATIONAL AMPLIFIER
  • OPA832 - Video Buffer Amplifier

Full PDF Text Transcription

Click to expand full text

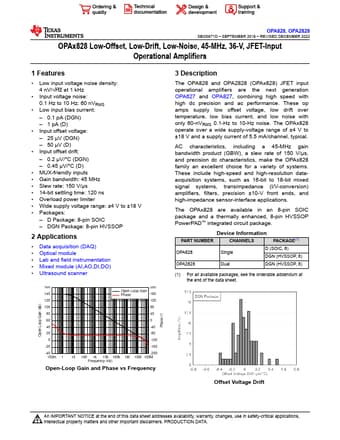

OPA828, OPA2828 SBOS671D – SEPTEMBER 2018 – REVISED DECEMBER 2022 OPAx828 Low-Offset, Low-Drift, Low-Noise, 45-MHz, 36-V, JFET-Input Operational Amplifiers Open Loop Gain (db) Phase (q) 1 Features • Low input voltage noise density: 4 nV/√Hz at 1 kHz • Input voltage noise: 0.1 Hz to 10 Hz: 60 nVRMS • Low input bias current: – 0.1 pA (DGN) – 1 pA (D) • Input offset voltage: – 25 μV (DGN) – 50 μV (D) • Input offset drift: – 0.2 μV/°C (DGN) – 0.
