REF35 - High-Precision Voltage Reference

Texas Instruments

📥 Download Datasheet

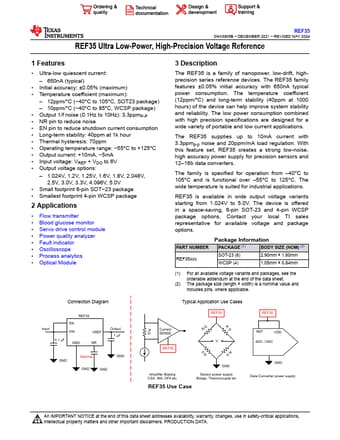

REF35 Datasheet Preview — Preview of REF35 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: REF35
Manufacturer: Texas Instruments ↗
File Size: 2.18 MB
Datasheet: REF35-etcTI.pdf
Description: High-Precision Voltage Reference

REF35 Product details

Description

The REF35 is a family of nanopower, low-drift, highprecision series reference devices.

Features

Ultra-low quiescent current:.
650nA (typical).
Initial accuracy: ±0.05% (maximum).
Temperature coefficient (maximum):.
12ppm/°C (.
40°C to 105°C, SOT23 package).
10ppm/°C (.
40°C to 85°C, WCSP package).
Output 1/f noise (0.1Hz to 10Hz): 3.3ppmP-P.
NR pin to reduce noise.
EN pin to reduce shutdown current consumption.
Long-term stability: 40ppm at 1k hour.
Thermal hysteresis: 70ppm.
