SN10KHT5539 Datasheet - Texas Instruments

SN10KHT5539 Octal ECL-to-TTL Translator

This octal ECL-to-TTL translator is designed to provide efficient translation between a 10KH signal environment and a TTL signal environment. This device is designed specifically to improve the performance and density of ECL-to-TTL CPU/bus-oriented functions such as memory-address drivers, clock dri.

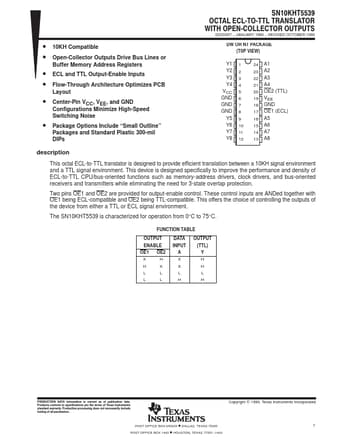

10KH Compatible Open-Collector Outputs Drive Bus Lines or Buffer Memory Address Registers ECL and TTL Output-Enable Inputs Flow-Through Architecture Optimizes PCB Layout Center-Pin VCC, VEE, and GND Configurations Minimize High-Speed Switching Noise Package Options Include “Small Outline” Packages and Standard Plastic 300-mil DIPs SN10KHT5539 OCTAL ECLĆTOĆTTL TRANSLATOR WITH OPENĆCOLLECTOR OUTPUTS SDZS007 JANUARY 1990
