SN5400

Quadruple 2-Input Positive-NAND Gates

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor KEMET Corporation SN5-400 CMC 48UH 2A 2LN TH DigiKey 1301 2500 units
$0.79

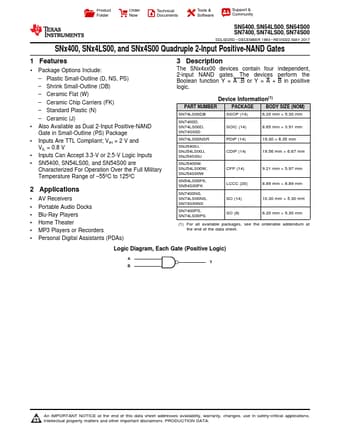

SN5400 Datasheet (1.39 MB)

Preview of SN5400 PDF

Datasheet Details

Part number:

SN5400

Manufacturer:

Texas Instruments ↗

File Size:

1.39 MB

Description:

Quadruple 2-input positive-nand gates.
Product Folder Order Now Technical Documents Tools & Software Support & Community SN5400, SN54LS00, SN54S00 SN7400, SN74LS00, SN74S00 SDLS025D

SN5400 Features

* 1 Package Options Include:

* Plastic Small-Outline (D, NS, PS)

* Shrink Small-Outline (DB)

* Ceramic Flat (W)

* Ceramic Chip Carriers (FK)

* Standard Plastic (N)

* Ceramic (J)

* Also Available as Dual 2-Input Positive-NAND Gate in Smal

SN5400 General Description

The SNx4xx00 devices contain four independent, 2-input NAND gates. The devices perform the Boolean function Y = A .B or Y = A + B in positive logic. Device Information(1) PART NUMBER PACKAGE BODY SIZE (NOM) SN74LS00DB SSOP (14) 6.20 mm × 5.30 mm SN7400D, SN74LS00D, SN74S00D SOIC (14) 8.65 .
