SN54ACT04 Datasheet - Texas Instruments

SN54ACT04 Hex Inverters

The ‘ACT04 devices contain six independent inverters. The devices perform the Boolean function Y = A. Package Information(1) PART NUMBER PACKAGE BODY SIZE (NOM) DB (SSOP, 14) 6.2 mm × 5.3 mm SNx4ACT04 D (SOIC, 14) NS (SO, 14) 8.65 mm × 3.9 mm 10.3 mm × 5.3 mm PW (TSSOP, 14) 5 mm × 4.4 mm .

SN54ACT04 Datasheet (1.62 MB)

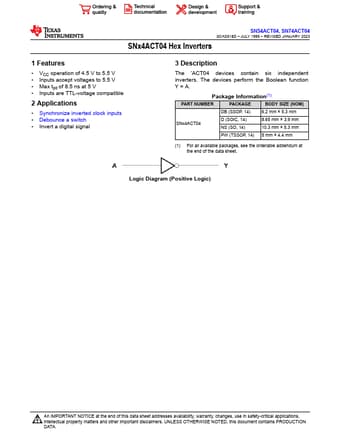

Preview of SN54ACT04 PDF

Datasheet Details

Part number:

SN54ACT04

Manufacturer:

Texas Instruments ↗

File Size:

1.62 MB

Description:

Hex inverters.
