SN54AHC273 Datasheet - Texas Instruments

SN54AHC273 Octal D-Type Flip-Flops

These devices are positive-edge-triggered D-type flip-flops with a direct clear (CLR) input. Information at the data (D) inputs meeting the setup time requirements is transferred to the Q outputs on the positive-going edge of the clock (CLK) pulse. Clock triggering occurs at a particular voltage lev.

SN54AHC273 Features

* 1 Operating Range 2-V to 5.5-V VCC

* Contain Eight Flip-Flops With Single-Rail Outputs

* Direct Clear Input

* Individual Data Input to Each Flip-Flop

* Latch-Up Performance Exceeds 250 mA Per JESD 17

* ESD Protection Exceeds JESD 22

* 2000-V H

SN54AHC273 Datasheet (1.58 MB)

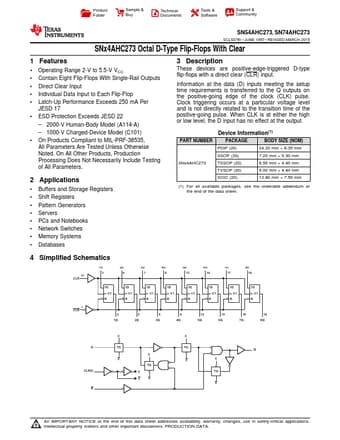

Preview of SN54AHC273 PDF

Datasheet Details

Part number:

SN54AHC273

Manufacturer:

Texas Instruments ↗

File Size:

1.58 MB

Description:

Octal d-type flip-flops.
